The Ultimate Connection Guide

Database systems course - Tel Aviv University





Contents:

Database connecting in general 1

Creating TAU database account 2

Oracle Express Edition (XE) database. 2

Oracle Client software: 2

SQL*Plus, 2

SQLDeveloper 3

Setting up an SSH Tunnel 6



Important Passwords

The following are the updated users/passwords at TAU's oracle server:

For the HR schema:                hr_readonly/tiger

For creating your own user:     Tau_Dummy/oracle



Database connecting in general

In order to connect to a database you have mainly two options:

  1. Connecting to an Oracle Express Database you have installed on your home computer
  2. Connect to the Oracle Enterprise Database already installed in TAU Computer Sciences Labs.





You can connect to both databases using various database clients, such as SQL*Plus and SQLDeveloper, that can be installed on your home computer as well.



In the next sections we will describe some of the connection options with the various tools. For these descriptions we will be using the following details:



Connection option

User

Password

SID
(service ID)

Host

Port

Comments (don’t forget to…)

From home client to home database

hr

Whatever you choose, needs to unlock user

xe

Localhost

(default)

1521 (default)

1.     Install XE database

2.     Install client software

System

As specified during the installation.

Connect from home client to TAU database

Your TAU user

Your TAU password

csodb

Localhost

1555

(defined by ssh)

1.      Install client software

2.      Create TAU database account

3.      Build SSH tunnel

Connect from TAU lab to TAU database

Your TAU user

Your TAU password

csodb

orasrv

1521 (default)

1.      Create TAU database account



Creating TAU database account

If this is your first time to login to Oracle you will need to create your account. Please follow this procedure:

-        Invoke SQL*Plus (see in the following sections how to do that) you will need to login using this account:
     sqlplus Tau_Dummy/oracle@csodb



-        Run the following command with your preferred username:
     exec user_creation('YOUR_PREFERRED_USERNAME');

-        Congratulations, you are done! You can restart SQL * Plus and log with your new username (the password is the same as the username).
Note that you will be asked to change your password on your first login.
     sqlplus YOUR_PREFERRED_USERNAME/YOUR_PREFERRED_USERNAME@csodb



Oracle Express Edition (XE) database

Tutorial on installation and connection

http://st-curriculum.oracle.com/tutorial/DBXETutorial/index.htm



Download product from:

http://www.oracle.com/technology/software/products/database/xe/index.html



Oracle Client software:

SQL*Plus,

From home

This is a part of the Oracle Express Edition database in <oracle home>app\oracle\product\10.2.0\server\BIN

To run it double-click on sqlplus.exe



In TAU CS lab (or “Putty” from home)

Before you can run SQL*Plus you need to:

Set a few variables. Again, type the following (tip: copy-paste..):

setenv LD_LIBRARY_PATH /usr/local/lib/instantclient_11_1/

setenv TNS_ADMIN /usr/local/lib/instantclient_11_1/

setenv LD_LIBRARY_PATH /usr/local/lib/instantclient_11_1/

setenv TNS_ADMIN /usr/local/lib/instantclient_11_1/



Run SQL *Plus. (Note that the username and password for “Tau_Dummy” is set here):

sqlplus Tau_Dummy/oracle@csodb







SQLDeveloper



Tutorial on installation and connection

http://st-curriculum.oracle.com/tutorial/SQLDeveloper/html/tutorialhome.htm



Download product from:

http://www.oracle.com/technology/software/products/sql/index.html



Example for using in TAU lab



Log in to your account

1.    Open a terminal

2.    Type the command "sqldeveloper &" in the command prompt

3.    The first time you run the program you will be asked if you would like to migrate from previous releases – answer “No”

4.    Also, you are welcome to download any suggested updates.



NOTE: The following settings are for creating a connection within TAU. To connect from home via tunneling you will need to change the hostname and port according to the table at the start of this page (also look at the following tunneling section)

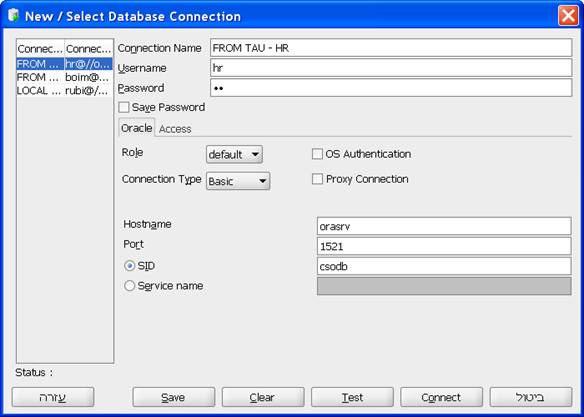

The first thing you need to do is to create a connection to the database:

1.    In the connections tab, right click the connections icon and select: “New Connection”

2.    Type in a connection name, username & password, leave the role unchanged

3.    In the basic tab enter the following values:

·       Hostname = orasrv

·       Port = 1521

·       SID = csodb

4.    Test the connection and if succeeded the press connect









Setting up an SSH Tunnel



The idea behind creating a tunnel is that your client would ‘think’ that the server is at localhost:1555, but the tunnel established from your machine (localhost) to nova.cs.tau.ac.il would redirect the requests to orasrv:1521



How to do that?

Run the latest version of Putty (note that old versions might not connect, so download the latest - this was done with 0.60) .

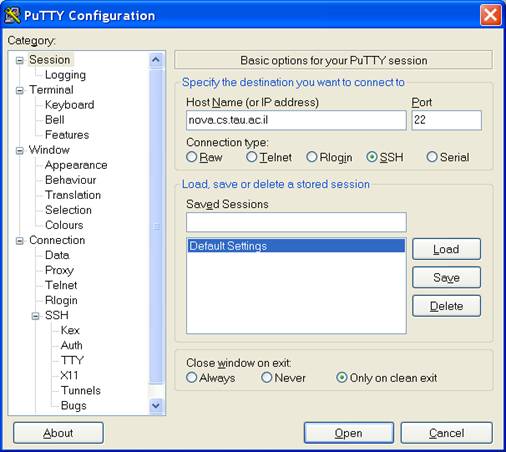

Set it to point to Nova (nova.cs.tau.ac.il on port 22) by ssh



We now define the tunnel:

-        Select “Connection à SSH à Tunnels” from the category tree.

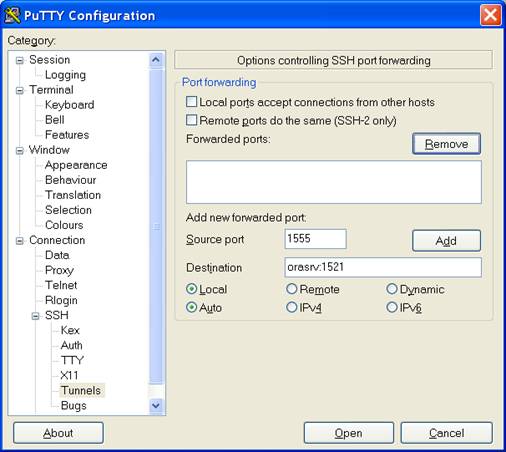

-        Enter the following:
Source port: 1555 (or something else you want..)
Destination: orasrv:1521

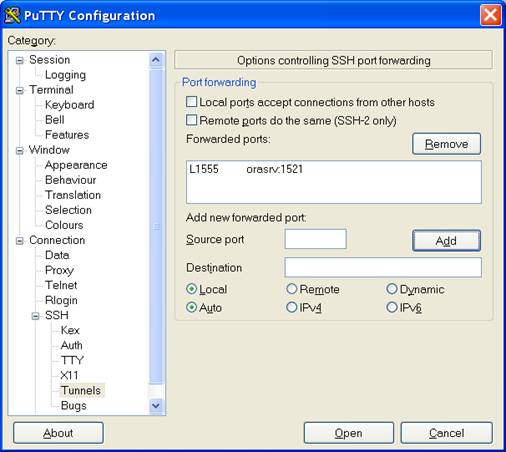

Now hit the “Add” button. Your screen should look something like this:

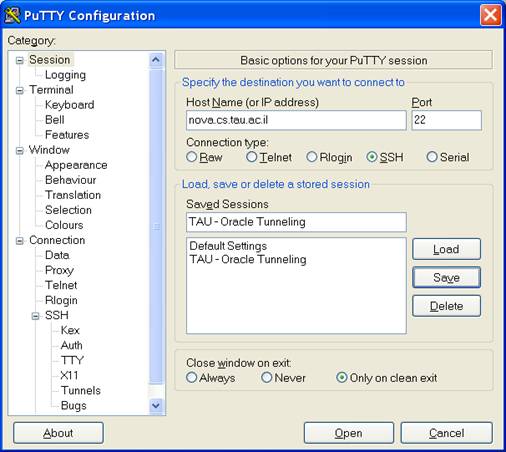

Now let’s just save the settings.. Go back to “Session” category, and your preferred name (in the picture “TAU - Oracle Tunneling”) and click save.

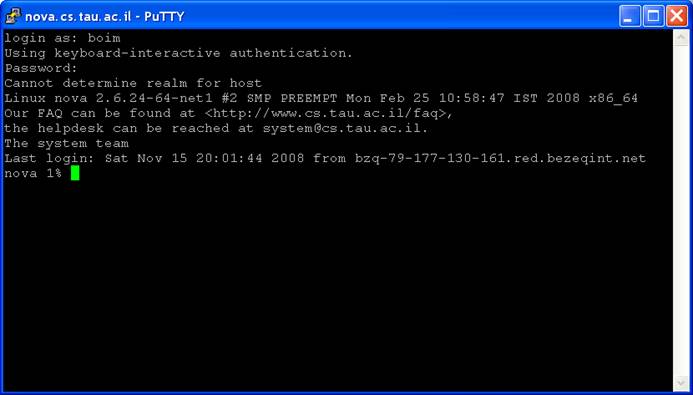

That’s it! Don’t forget to actual connect to nova by entering your unix username and password..

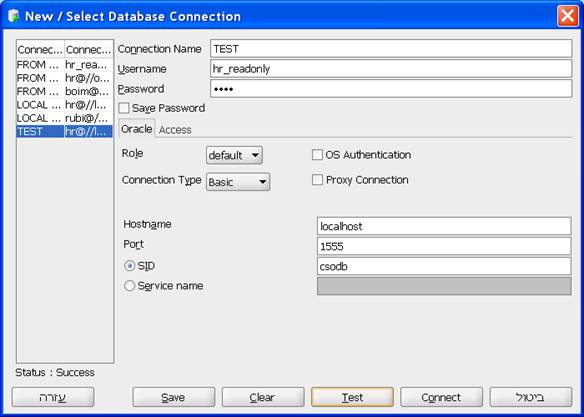

The following image is for using SQLDeveloper with the tunnel:
